The AMD Ryzen 5 3600 is a desktop processor with 6 cores, launched in July 2019, at an MSRP of $199. It is part of the Ryzen 5 lineup, using the Zen 2 (Matisse) architecture with Socket AM4. Thanks to AMD Simultaneous Multithreading (SMT) the core-count is effectively doubled, to 12 threads. Ryzen 5 3600 has 32 MB of L3 cache and operates at 3.6 GHz by default, but can boost up to 4.2 GHz, depending on the workload. AMD is making the Ryzen 5 3600 on a 7 nm production node using 3,800 million transistors. The silicon die of the chip is not fabricated at AMD, but at the foundry of TSMC. You may freely adjust the unlocked multiplier on Ryzen 5 3600, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.

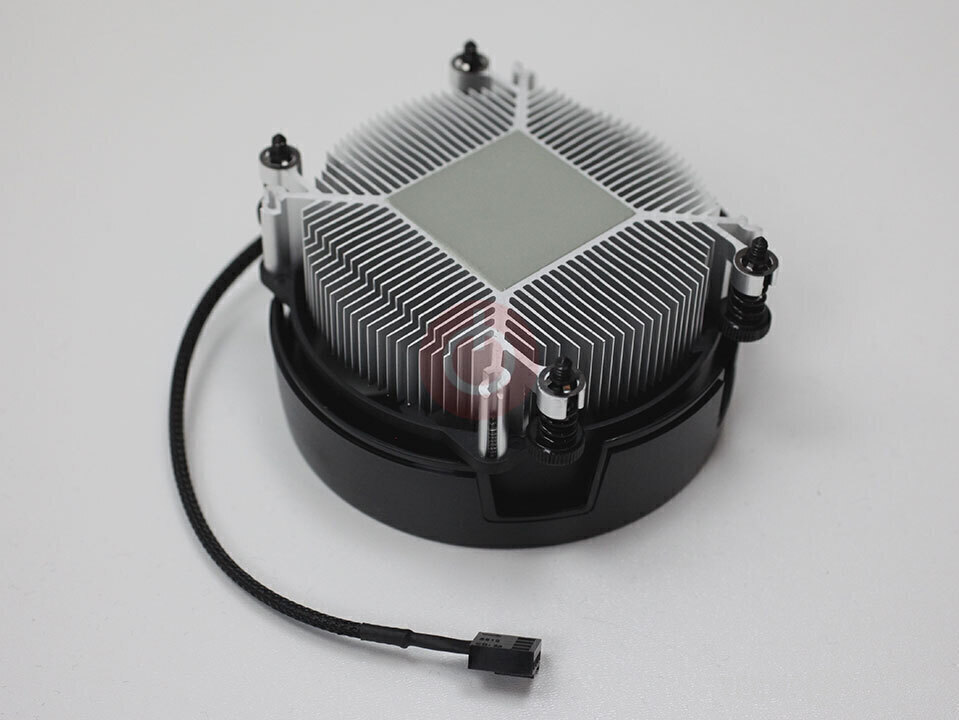

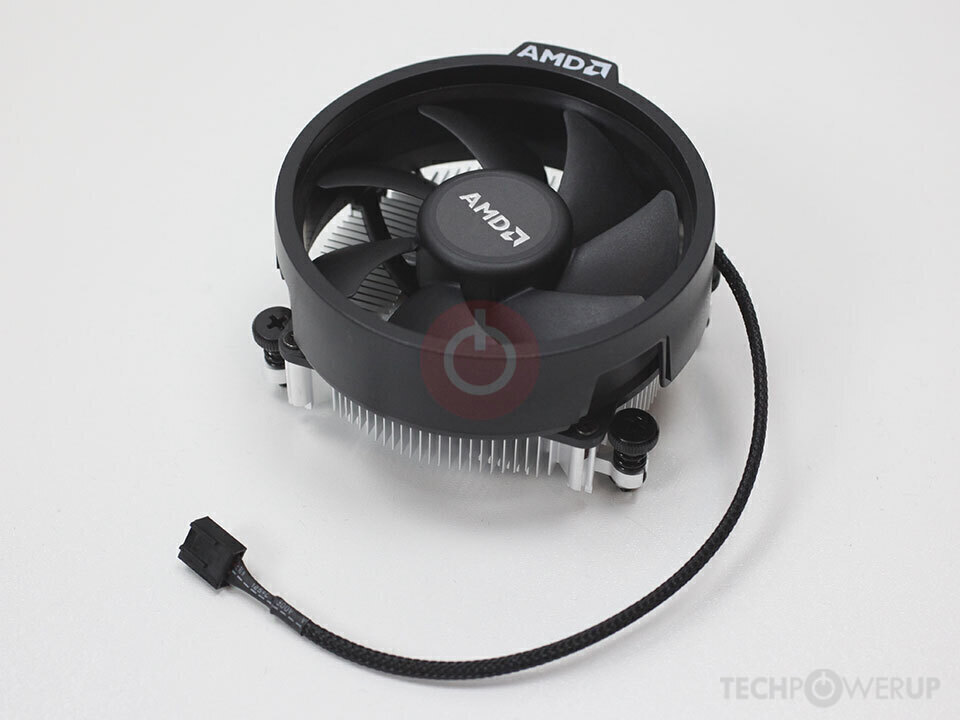

With a TDP of 65 W, the Ryzen 5 3600 consumes typical power levels for a modern PC. AMD's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 3200 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the machine, Ryzen 5 3600 uses a PCI-Express Gen 4 connection. This processor does not have integrated graphics, you will need a separate graphics card. Inside the box you will not only find the processor, but also a Wraith Stealth cooler.
Hardware virtualization is available on the Ryzen 5 3600, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) can run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD is including the newer AVX2 standard, too, but not AVX-512.
AMD Ryzen 5 3600
AMD
CPU
$199.00
发布日期:2019-07-07
The AMD Ryzen 5 3600 is a desktop processor with 6 cores, launched in July 2019, at an MSRP of $199. It is part of the Ryzen 5 lineup, using the Zen 2 (Matisse) architecture with Socket AM4. Thanks t
产品图集
产品详情
基础信息
| 型号 | AMD Ryzen 5 3600 |
| 品牌 | AMD |
| 分类 | CPU |
| 参考价格 | $199.00 |
| 发布日期 | 2019-07-07 |
CPU特性参数
| 核心数 | 6 |
| 线程数 | 12 |
| 基础频率 | 3.60 GHz |
| 加速频率 | 4.20 GHz |
| 基础时钟 | 100.00 MHz |
| 倍频 | 36.00x |
| 倍频解锁 | 是 |
| 制程工艺 | 7 nm |
| TDP功耗 | 65 W |
| 接口类型 | AM4 |
| 代号 | Matisse |
| 代次 | Ryzen 5 (Zen 2 (Matisse)) |
| 市场定位 | Desktop |
| 发布价格 | $199.00 |
| 型号/部件号 | 100-000000031 |
| 包含散热器 | 是 |
| 代工厂 | TSMC |
| 晶体管数量 | 3,800 million |
| 芯片尺寸 | 74 mm² |
| 封装类型 | µOPGA-1331 |
| 最大工作温度 | 95°C |
| 内存支持 | DDR4 |
| 内存速度 | 3200 MT/s |
| 内存总线 | Dual-channel |
| 内存带宽 | 51.2 GB/s |
| ECC内存 | 不支持 |
| PCIe版本 | Gen 4 |
| PCIe通道数 | 16 |
| 支持芯片组 | AMD 300 Series, AMD 400 Series, AMD 500 Series |
| L1缓存 | 64 KB (per core) |
| L2缓存 | 512 KB (per core) |
| L3缓存 | 32 MB (shared) |
| 集成显卡 | N/A |
